SPECIFICATIONS

Brand Name: tronxy



TRONXY Model: X5SA-400

CE Certification: Yes

Slice Thickness: 0.1-0.4mm

Maximum Printing Speed: 150mm/s

Nozzle Diameter: 0.4mm

Diameter Temp: 60

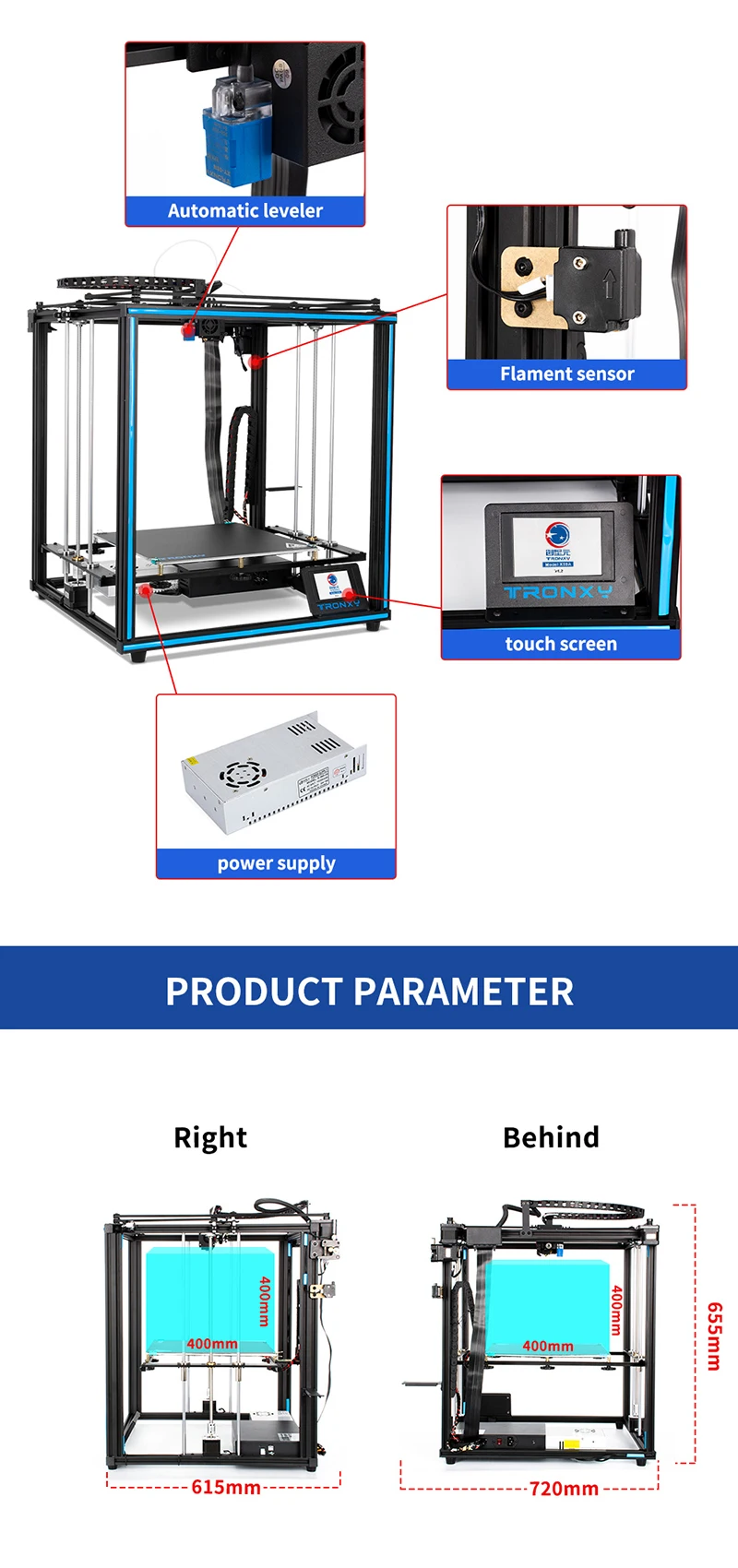

Auto Leveling: YES

Maximum Print Size: 400*400*400mm

Color Print Speed: 20-150mm/s

Consumables Diameter: 1.75mm

Certification: CE

Printing Speed: 60mm/s

Language: Engilsh

Fliament: PLA ABS HIPS WOOD PC PVE TPU

Slice Software: repetier host /cura

Power Supply: 24V

Precision: XY:0.0125mm , Z:0.02mm

Operating System: WINDOWS/MacOS/Linux

File Format: STL/OBJ/GCODE

Molding Technology: FDM

Interface Type: USB

Maximum Working Speed: 150mm/s

Voltage: 110-220V

3D Printer: 3d printing



Tronxy X5SA 400 Series SA Pro 2E FDM 3D Printer Upgrade Large Size TPU 24V High Precision Auto-Leveling DIY 3d Printer 400*400mm









Model: X5SA-400PRO
Model: X5SA-400PRO

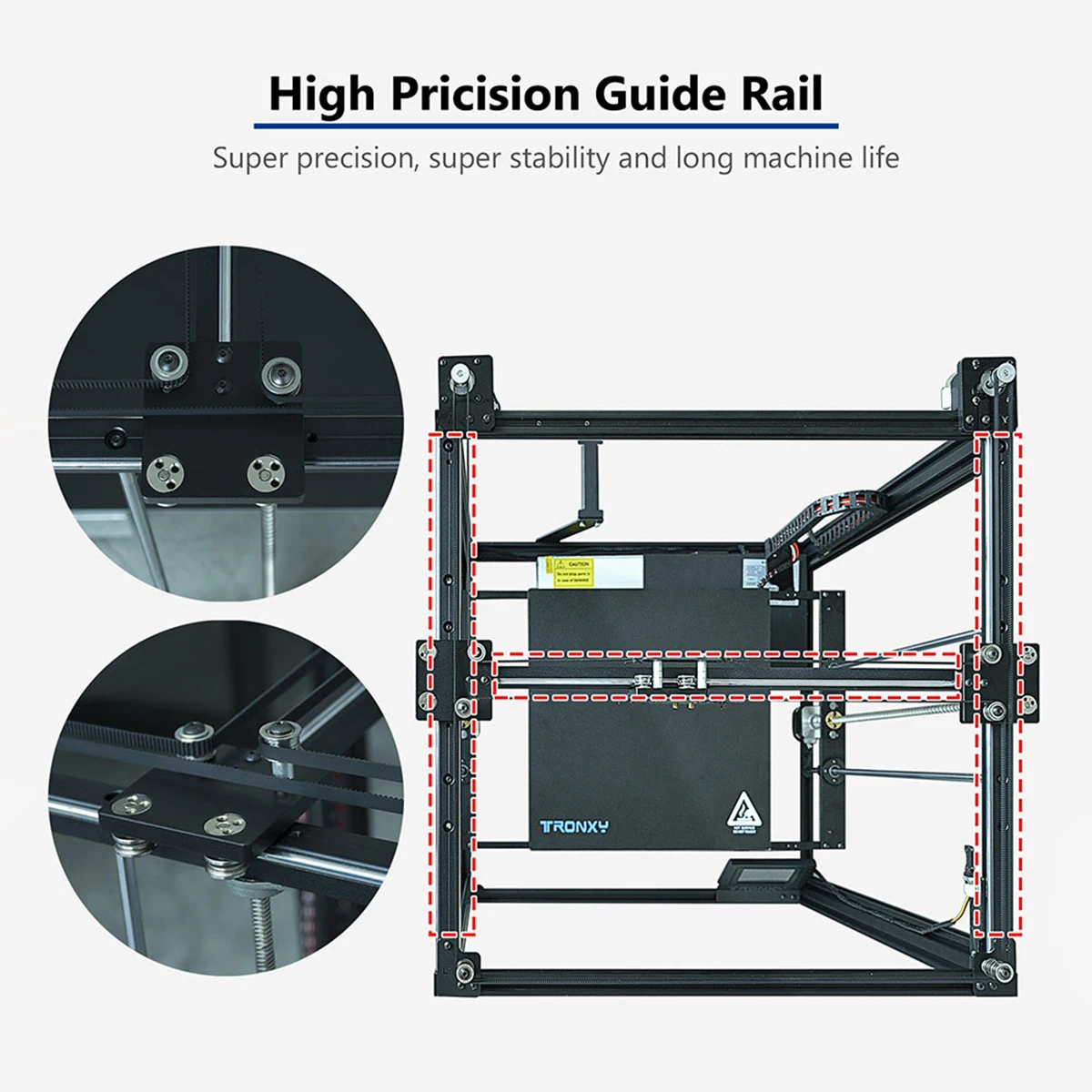

Frame Material: Aluminum Alloy + Metal
Display: 3.5 Inch Full-Color Touchscreen
Molding Technology: FDM
Printing Size: 400 * 400 * 400mm
Input: AC 110/220V, 50/60Hz
Output: DC 24V, 15A
Printing Speed: 20-100mm/s(Suggest 60mm/s)
Printing Precision: 0.05-0.2mm
Print Thickness: 0.1-0.4mm
Positioning Accuracy: X/Y: 0.00625mm  Z: 0.00125mm
Nozzle Quantity: 1pc
Nozzle Diameter: 0.4mm
Supporting Material: PLA, ABS, HIPS, WOOD, PC, TPU
Slicing Software: Cura, Repetier-Host, TRONXY
Input Format: STL, OBJ
Output Format: G-Code
Operating System: Windows, Mac OS, Linux
Operation Language: Chinese/ English
Link: USB Interface, TF Card(8G)
Hotbed Temperature: Up to 100℃
Print Head Temperature: Up to 260℃
Ambient Temperature: 0-40℃
Environment humidity: 20-80%
Printer Size: 66 * 66 * 68cm/ 26.0 * 26.0 * 26.8in
Printer Weight: 15.5kg/ 34.2lb
Package Size: 67 * 47 * 19cm/ 26.4 * 18.5 * 7.5in
Package Weight: 17.5kg/ 38.6lb
